IP55 Kabinet Telekomunikasi Luar Ruang Dengan Unit Distribusi Daya Rak 19 inci Dan Rak Baterai
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | ESTEL |
| Sertifikasi: | ISO9001, CE, RoHs |
| Nomor model: | ET9090210C-20U |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 set |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kasus kayu dengan palet |
| Waktu pengiriman: | 4-6 Minggu |
| Syarat-syarat pembayaran: | Western Union, T/T |
| Menyediakan kemampuan: | 4000 BUAH/Bulan |
|
Informasi Detail |
|||
| Bahan: | Baja galvanis, dinding tunggal dengan insulasi panas | Pendinginan: | AC dan kipas angin |
|---|---|---|---|
| Fitur: | dengan Unit Distribusi Daya | Bagian: | Lampu LED dengan saklar |
| Perlindungan Masuknya: | IP55 | Pintu: | 1 pintu depan |
| Menyoroti: | Kabinet Telekomunikasi Luar Ruang 19 inci,Rak Baterai Kabinet Telekomunikasi Luar Ruang,IP55 Kabinet Telekomunikasi Luar Ruang |
||
Deskripsi Produk

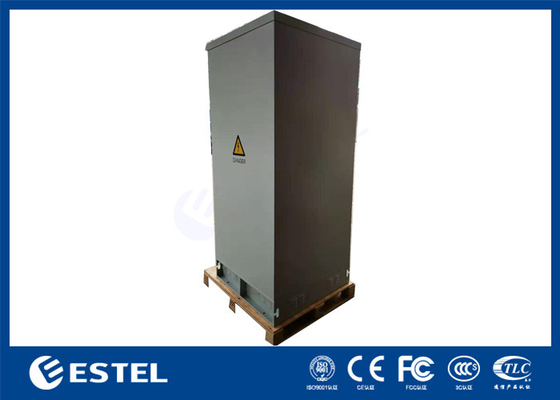

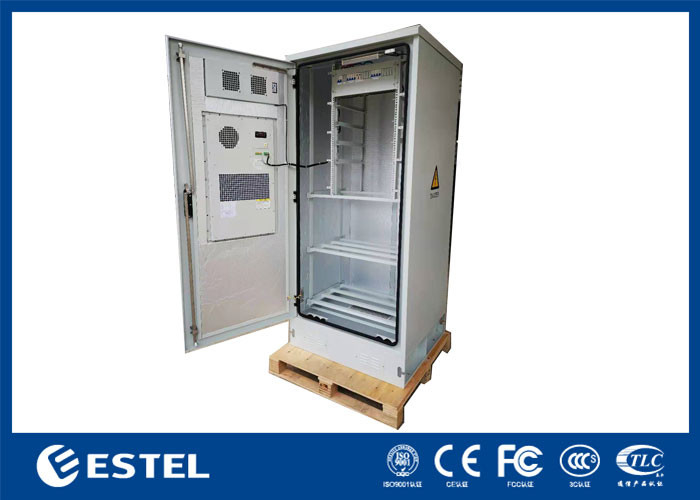

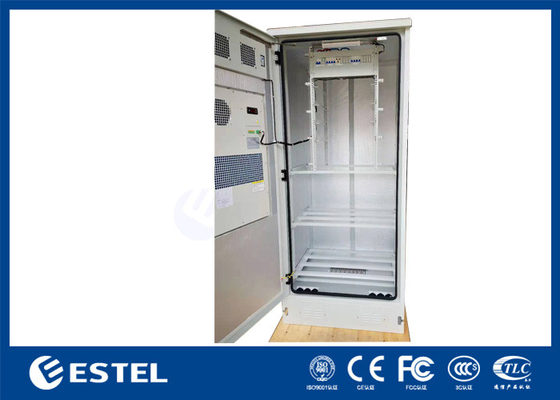

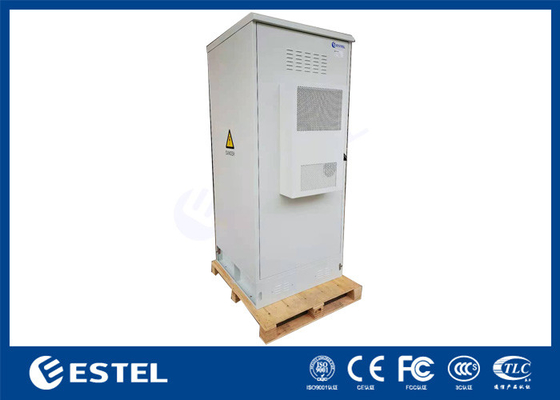

IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Application:
- Satellite Communication
- Wireless Backhaul
- Cable Television
- Navigation & Positioning
- Military Installation
- Port Security
IP55 Outdoor Telecom Cabinet With 19inch Rack Power Distribution Unit And Battery Shelf Features:
- Front access to the inside equipment
- IP level: IP55
- Standard 19“ rack for installation
- Outdoor anti corrosion powder coating
- The cabinet is dustproof, sunproof and rainproof, can be used in outdoor harsh environment
- Cabinet cooling: 1500w air conditioner
- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
- High integration, compact structure, easy installation and migration on later stage
- Anti-theft three point lock, excellent keyhole protection device
- All the screws&nuts are stainless steel material
- Support full design according to customer’s requirement
- All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
IP55 Outdoor Telecom Cabinet Specification:
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1)External Dimension:W×D×H 900×900×2100mm (2)One compartment: including 19” rack. (3)With one front door , with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. |
| 2 | Air Conditioner | 1 | Set |
Cooling Capacity: 1500W Power Supply: 110VAC, 60Hz |
| 3 |
Power Distribution Unit |
1 | Set |
Grade B Lightning Proof AC Input: 63A/2P ×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4. Height: 4U |
| 4 | Fan | 2 | Set | DC48V |
| 5 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 6 | LED Lamp | 1 | PC | DC48V |
| 7 | Package | 1 | Set | Wooden Case |
PDU Principle Diagram
Cabinet Diagram:
